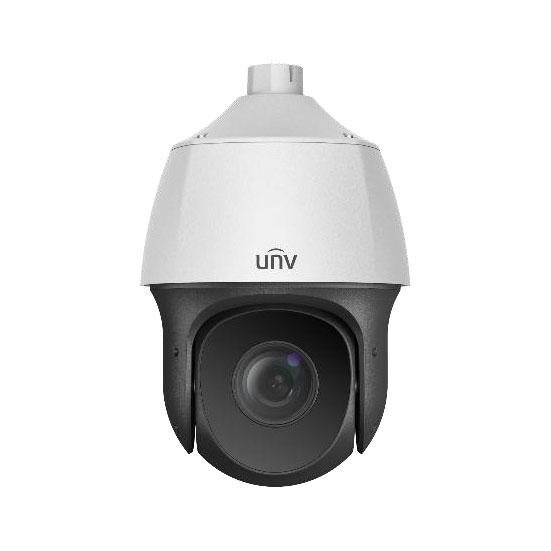

2.0MP 22X Optik Zoom 150Mt. IR LightHunter, Auto Tracking IP PTZ Kamera

Categories: IP KAMERALAR, IP PTZ Kameralar

Description
Reviews (0)

Camera
Sensor	1/2.9″ progressive scan, 2.0 megapixel, CMOS
Lens	5.2~ 114.4 mm，AF automatic focusing and motorized zoom lens
Digital Zoom	16
Optical Zoom	22
DORI Distance	Lens	Detect(m)		Observe(m)			Recognize(m)		Identify(m)
Angle of View (V)	5.2mm	83.6		33.4			16.7		8.4
Angle of View (O)	114.4mm	1838.6		735.4			367.7		183.9
Angle of View (H)	54.40°~ 3.44°
Angle of View (V)	39.2° ~1.9°
Angle of View (O)	66.9° ~4.1°
Adjustment angle	Pan: 0°~360°		Tilt: 0°~90°					Rotate: 0°~360°
Shutter	Auto/Manual, shutter time: 1 ~ 1/100000 s
Minimum Illumination	Colour: 0.01 lux (F1.5,AGC ON) 0 lux with IR
Iris	F1.5
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>55 dB
IR Range	UP to 150m (492ft)
Defog	Digital Defog
WDR	DWDR
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream:2MP (1920×1080):Max. 30 fps; Sub Stream:2MP (1920×1080):Max. 30 fps; Third Stream: D1 (720×576): Max. 30 fps
HLC	Supported
BLC	Supported
EIS	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 24 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection					Face detection、Audio detection
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication				Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	N/A				G.711
Two-way Audio	N/A				Supported
Suppression	N/A				Supported
Sampling Rate	N/A				8 KHZ
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL
Compatible Integration	ONVIF(Profile S, Profile G, Profile T), API
Pan & Tilt
Pan Range	360°
Pan Speed	0.1°/s ~ 240°/s
	Preset speed: 300°/s
Tilt Range	–15° ~ +90° (auto reverse)
Tilt Speed	0.1° ~ 80°/s
	Preset speed: 80°/s
Number of Presets	1024
Patrol	Preset patrol, route patrol, recorded patrol
Home Position	Supported
Interface
Audio I/O	N/A				1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
	N/A				1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	N/A				1/ 1
Network	1 RJ45 10M/100M Base-TX Ethernet				1 RJ45 10M/100M Base-TX Ethernet
General
Power	DC 12V±10%				DC 12V±10%, PoE (PSE Required)
	Power consumption: 16~30 W
Dimensions (Ø x H)	Φ215mm×344mm(Φ8.5” x13.5”)
Weight	3kg(6.6lb)
Working Environment	–40°C ~ +65°C (-40°F ~ 149°F), Humidity:10%~90% RH(non-condensing)
Ingress Protection	IP66
Reset Button	Supported
