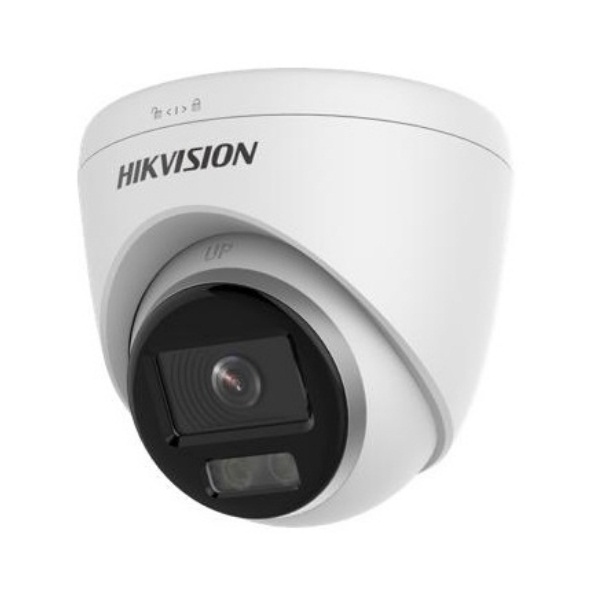

2MP 2.8mm 20Mt. ColorVu Hibrit IR Dome Kamera

Camera

Image Sensor

2 MP CMOS

Signal System

PAL/NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rate

TVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC

Min. Illumination

0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

Lens

2.8 mm, 3.6 mm, 6 mm Fixed Lens

Field of View

2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°
3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°
6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°

Lens Mount

M12

Light Alarm

Solid Light Alarm (White Light)

WDR (Wide Dynamic Range)

Digital WDR

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Menu

White Light

Auto/Off

Image Mode

STD/HIGH-SAT/HIGHLIGHT

AGC

Yes

Day/Night Mode

Color

White Balance

Auto/Manual

AE (Auto Exposure) Mode

DWDR, BLC, HLC, Global

Noise Reduction

3D DNR/2D DNR

Language

English

Function

Brightness, Mirror, Sharpness, Anti-Banding, Smart Light

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Operating Conditions

-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)

Power Supply

12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.

Consumption

Max. 2.4 W

Material

Plastic

White Light Range

Up to 20 m

Communication

HIKVISION-C

Dimension

Φ 85.02 mm × 81.25 mm (Φ 3.35″ × 3.2″)

Weight

Approx. 161 g (0.36 lb)
